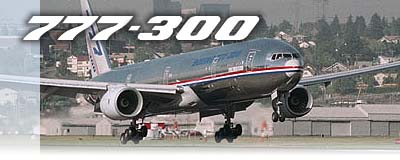

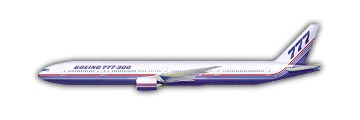

777-300
Technical Characteristics Passengers Typical 3-class configuration Typical 2-class
configuration Typical 1-class configuration 386 479 up to 550 Cargo* Eight 96-in
x 125-in pallets in forward lower hold, 20 LD-3 containers in aft lower hold,
and 600 ft3 (17.0 cu m) bulk cargo for total lower hold volume of 7,552 cu ft
(213.9 cu m) Engines maximum thrust Pratt & Whitney 4098 98,000 lb (44,452 kg)
Rolls-Royce Trent 892 90,000 lb (40,823 kg) Maximum Fuel Capacity 45,220 U.S.
gal (171,170 L) Maximum Takeoff Weight 660,000 lb (299,370 kg) Maximum Range
5,960 nautical miles (11,030 km) Typical city pairs: Tokyo-Singapore, Honolulu-Seoul,
South Korea; San Francisco-Tokyo Typical Cruise Speed at 35,000 feet 0.84 Mach

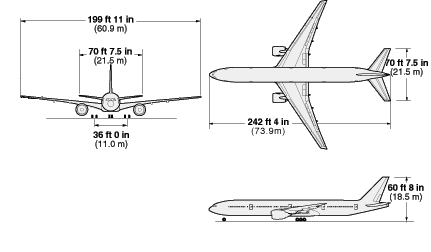

Basic Dimensions Wing Span Overall Length Tail Height Interior Cabin Width 199
ft 11 in (60.9 m) 242 ft 4 in (73.9 m) 60 ft 8 in (18.5 m) 19 ft 3 in (5.86
m) |
|
