Passengers
- Typical 3-class configuration - Typical 2-class configuration - Typical 1-class
configuration 245 304 up to 375 Cargo 4,580 cu ft (129.6 cu m) Engines maximum
thrust - Pratt & Whitney PW4062 63,300 lb (28,713 kg) - General Electric CF6-80C2B8F
63,500 lb (28,804 kg) Maximum Fuel Capacity 23,980 U.S. gal (90,770 l) Maximum
Takeoff Weight 450,000 lb (204,120 kg) Maximum Range Typical city pairs: London-Tokyo
Newark-Moscow Chicago-Warsaw 5,635 nautical miles 10,440 km Typical Cruise Speed

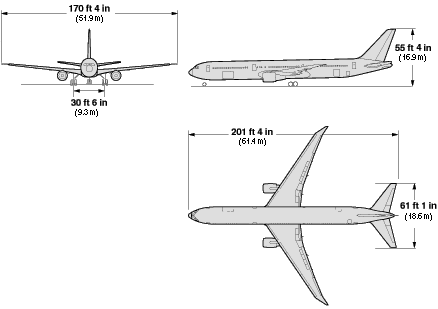

at 35,000 feet 0.80 Mach 530 mph (850 km/h) Basic Dimensions - Wing Span - Overall
Length - Tail Height - Interior Cross Section 170 ft 4 in (51.9 m) 201 ft 4
in (61.4 m) 55 ft 4 in (16.8 m) 15 ft 6in (4.7 m) |
